L2 PRO 3D Laser Scanning Equipment Reconstruction Device For Terrain Surveying

Name: L2 PRO 3D Laser Scanning Equipment Reconstruction Device For Terrain Surveying
Brand: TBNET
Price: 1 USD

Buy cheap L2 PRO 3D Laser Scanning Equipment Reconstruction Device For Terrain Surveying product

Brand Name : TBNET

Model Number : L2 PRO

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Working Range : 0.5m~120m

Laser Class : Class 1 / 905nm

Laser FOV : 360°×270°

Relative Accuracy : ±1.2cm

Absolute Accuracy : ≤3cm

Repeat Accuracy : ≤2cm

Contact Now

Real-time Modeling, Realistic Color

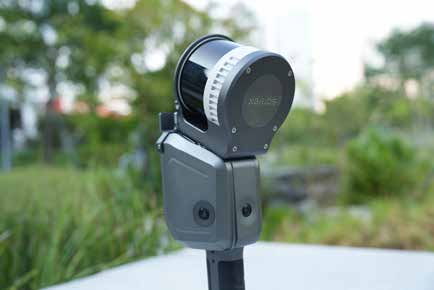

The Lixel L2 Pro (16/120 version) is an advanced 3D scanning and reconstruction device by XGRIDS. Equipped with cutting-edge modules, including LiDAR, 3-color cameras, high-precision inertial navigation, and a high-performance computer, the Lixel L2 Pro delivers seamless data capture and real-time modeling. It creates true-color point cloud models with centimeter-level precision, offering a powerful tool for precise 3D reconstruction on the spot.

L2 PRO High-Precision Real-Time Scanning & Modeling Device
Ideal for large-scale, complex scene modeling
Achieves real-time true-color data comparable to post-processing, enabling instant modeling
Generates dense point clouds with 1mm spacing for highly accurate line drawing and mapping

Main Applications of the L2 PRO:

Terrain Surveying

Engineering Surveying

Mining Exploration

Urban Renewal


Output point clouds directly without any other devices	Modeling while scanning, deliver what you see and scan	Top-tier point cloud quality	Cope with various complicated scenes

Application Scenarios


Land Survey	Engineering Survey	Urban Renewal

Minning Survey	Agriculture & Forestry	Emergency Survey

Software

L2 PRO 3D Laser Scanning Equipment Reconstruction Device For Terrain Surveying

An all-in-one 3D post-processing software that offers a range of features, including point cloud

viewing, editing, model generation, and post-processing.

Mobile-controlled operational workflow, real-time preview of scan results, and one-screen monitoring of device status.

Specification

Working Range	0.5m~120m	Handheld Weight	<1.6kg
Laser Class	Class 1 / 905nm	Visual-Aided Positioning	Supported
Laser FOV	360°×270°	Real-Time Colored Point Cloud	Supported
Processing Mode	Real-time/Post-processing	5G Real-Time Transmission	Supported
Scan Speed	320,000 points/s	RTK Fusion	Supported
Operating Temperature	-20°~50°	Resume Scanning from Breakpoint	Supported
Power Consumption	<30W	Point Cloud Format	.Las
Storage Capacity	1TB	Relative Accuracy	±1.2cm
Operating Time	1.5h	Absolute Accuracy	≤3cm
Protection Level	IP54	Repeat Accuracy	≤2cm
Horizontal Accuracy	≤0.015°	Battery Capacity	46.8wh
Cameras	3	RTK Frequency	BDS: B1I,B2I,B3I GPS: 1C/A,L2P (Y) /2C,L5 GLONASS: L1 L2 Galileo: E1,E5a,E5b
Power Supply	Fast-lock battery/External power
